We support our purchasers with ideal high-quality merchandise and significant level company. Becoming the specialist manufacturer in this sector, we now have received loaded practical encounter in producing and managing for Factory Price For China Professional Aluminum Tool Case with Dividers (KeLi-tray-06), Currently, we are seeking ahead to even bigger cooperation with abroad buyers determined by mutual benefits. Please sense absolutely free to contact us for more details.
We support our purchasers with ideal high-quality merchandise and significant level company. Becoming the specialist manufacturer in this sector, we now have received loaded practical encounter in producing and managing for China Combined Case and Aluminum Tool Case price, Many kinds of different products are available for you to choose, you can do one-stop shopping here. And customized orders are acceptable. Real business is to get win-win situation, if possible, we would like to provide more support for customers. Welcome all nice buyers communicate details of products with us!!

No.1 Quotation List

No.

Name

Model

Unit price

(US$)

Quantity

(Set)

Amount

(US$)

Motor Power (KW)

Whole tyre Pre-processing :extract the steel Rim from tyre, and get <50x50mm rubber block
01 Single Hook Debeader

LSJ-1300



1



15

02 Whole Tyre Cutter

QDJ-1300



1



7.5

03 Whole Tyre Shredder(with feed conveyor)

ZPS-900



1



30×2+1.1+2.2=63.3
Rubber granule processing: Crush the above block into 2-5mm rubber granules, at the same time, separate steel wire
04 Rubber Cracker Mill

XKP-710



1



250

   05    Auxiliary Equipment

Main Vibrating Screen

MVS-11



1



11

26.5

Auxiliary Vibrating Screen

AVS-4

4

5 Roll Magnetic Separator

RMS-1.5

1.5

Water-cooled screw feeder

RPF-3

3

Coarse Rubber Powder Return Belt

PRB-1.5

1.5

PVC anti-tie steel wire conveyor belt

WCB-4

4

Front and rear lifting assembly of gantry frame

AGF-1



2-roll magnetic separator

RMS-2

1.5

Total

5



362.3KW

Note:1. These all machines prices are based on FOB Qingdao.

No.2 Business Terms

Payment terms 1. 30% T/T of total contract value to be paid in advance.2. The balance 70% to be paid when all the machines get ready for delivery.
Power supply As per the buyer’s requirement( it should be confirmed in the contract )
Terms of Delivery Delivery Time:60 days after receipt of 30% down payment
If required, the seller will arrange 1~2 professional technicians to guide installation and debugging the machines at buyer’s plant, visa round trip and tickets, hotel cost, food are buyer cost. The exact cost will be discussed further.
Warranty 18 months since the normal working in the buyers’ factory.
Validity of the Quotation 30 days since the offer date

Use: Pulling out the wire loops from the mouth of waste tires.

Structure Features:

The blade of cutter is made of alloy welding and the surface is hard wear-resisting.

On safety factor, this machine have protective frame, which can effectively guarantee safety in the process of pulling out wire loop.

Motor and reducer, and as a whole, the structure is compact.

The machine occupies the whole floor, convenient installation.

Technical Parameters:

Model LSJ-1300
Pulling Force 5T
Motor Power 15KW
Max. Tire range 1300mm
Overall Dimension (L×W×H) 1900×1055×1355 (mm)
Weight 2.5T
Reference Photo   tb2





(wires in the tyre mouth)

 tb1

Use:

Cut the waste tires blocks into several parts and will be more convenient for tire shredder machine shredding.

The tire blocks cutting machine is made up of motor, hydraulic system, oil cylinder, one pair of blade, frame and rotating body etc.

Technical Parameters

Adapt tire ≦1300mm
Motor power 7.5kw
Dimension (L×W×H)  2080×1000×2130 (mm)
Weight 1.8T
Reference Photo tb4

(tyres cut in pieces)



 tb3

Use:

At the general temperature, the large tire blocks can be shredded directly into 50*50mm tire blocks.

Technical Parameters:

Model ZPS-900
Input Size ≤ 900mm
Discharge Size 50×50mm
Motor Power 30×2KW (2 sets of motor)
Capacity 1.5-2Ton/H
Screener and Small Conveyor Power 1.1KW
Big Conveyor Power 3KW
Main Shaft Speed 19RPM
Screener Speed 4RPM
Number of Blades 18pieces (made of alloy steel, welded)
Weight 6T
Dimension (L×W×H) 3450×2100×2400(mm)
    tb6(rubber blocks in 50×50mm)  tb5

Use: Mainly used for crushing large rubber blocks into 2-5mm rubber granules.

Structural Features:

Our crushers are designed humanized with nice operating platforms; all the wires will be connected well from controlling system to motor.

When using the machine, the customers just need to connect directly to the power.

Technical Parameters:

Model XKP-710
Groove roller:Work roll diameter X Work roll length 710mm x 1100mm
Smooth roller: Work roll diameter X Work roll length 610mm x 1100mm
Linear Speed of Groove Roller 70.06m/min
Rotary Speed of Groove Roller 31.42r/min
Capacity 3.5t/h(for 2-5mm)
Power 250kw
Dimension(LxWxH) 6200mmx2260mmx1700mm
Adjustable Roller Space 0.1mm - 20mm
Cooling Mode Rotating Joint,Water Cooling
Rack Material and Roller Material Cast Steel
Weight Appr. 30ton
Reference Photo  tb11

(crushed rubber granules)

 tb7

Function: Separate the wire, Screening the qualified rubber granules

1) Main Vibrating Screen: Length 8m, Width 1.15m. Stainless steel screen.

2) Auxiliary Vibrating Screen: Length 4m, Width 1m.

3) 5 Roll Magnetic Separator: Power 1.5kw

4) Water-cooled screw feeder: Lenghth 3m

5) Coarse Rubber Powder Return Belt: Lenghth 2m

6) PVC anti-tie steel wire conveyor belt: Length 8.5m, Width 0.8m.

7) Front and rear lifting assembly of gantry frame: Screw rod hoisting 1 set

8) 2-roll magnetic separator: Technical specification of vulcanized rubber powder with metal content less than or equal to GBT 19208-2008

 tb10

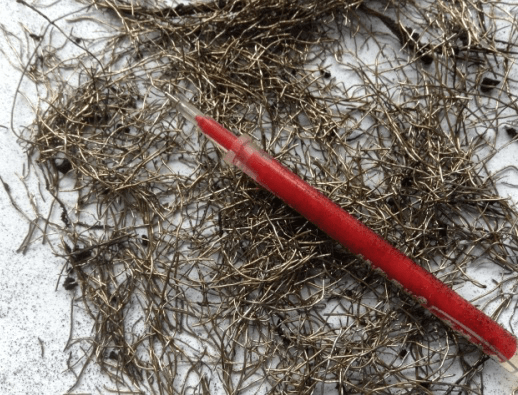

(Separated small steel wires from rubber granules)

tb9

 tb12

tb11

Our Mexicos project for your reference:

Solution1 Traditional configuration Solution2 Economical configuration Solution3 Automatic configuration



al1 al2 al3
